    Interactive Pose Editor - New `ae-in-workflow` node - v1.0
    Preview 114590852

    I've just finished the initial release of my nodes that I've been working on.

    Currently only one, but I think it's pretty special. I've been using it a lot with z-image-turbo w/ control net and Qwen-Image-Edit-2509 but it works great with anything that takes a pose obviously.

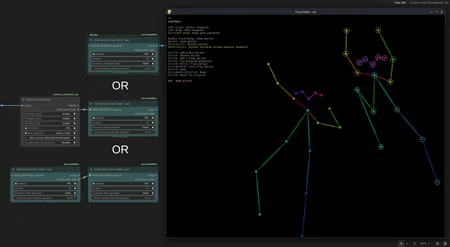

    Interactive Pose Editor

    Category: ae-in-workflow

    An interactive pose editor that allows users to manipulate OpenPose keypoints with full control.

    Features:

    • Individual Keypoint Editing: Click and drag any keypoint

    • Person Selection: Automatically selects the person closest to your mouse

    • Multi-person Support: Handle scenes with multiple people

    • Pose Manipulation: Move, rotate, and scale entire poses

    • Smart Spacing: Automatically spaces overlapping people

    • Keypoint Fixing: Automatically estimates missing keypoints using T-pose proportions

    • Duplication: Clone poses for creating variations

    • Caching: Remembers your edits for faster subsequent sessions

    Controls:

    Left Click: Select and drag keypoints
    Left Drag: Move keypoint
    Ctrl + Left Drag: Move keypoint with children
    Middle Click + Drag: Move selected person
    Scroll: Zoom selected person
    Ctrl + Scroll: Rotate selected person
    Shift + Scroll: Rotate children around nearest keypoint
    Ctrl + D: Duplicate selected person
    Ctrl + X: Delete selected person
    Ctrl + N: Add new T-pose person
    Ctrl + F: Fix missing keypoints
    Ctrl + R: Flip horizontally (mirror pose)
    Ctrl + Shift + R: Flip horizontally (turn around)
    Ctrl + Z: Undo last action
    Ctrl + Shift + Z / Ctrl + Y: Redo action
    Ctrl + O: Reset to original input
    ESC: Save & Exit


    Inputs:

    • pose_data (optional): OpenPose format pose data as JSON string (if not provided, starts with default T-pose)

    • padding (optional): Padding around poses in output (default: 128)

    • seed (optional): Change to force re-execution with same pose data (default: 0)

    • reset_cached_window_position (optional): Reset window position/size to defaults (default: False)

    Outputs:

    • image: Rendered pose visualization image

    • edited_pose_data: Modified pose data in OpenPose format as JSON string
